Window Regulator Cables

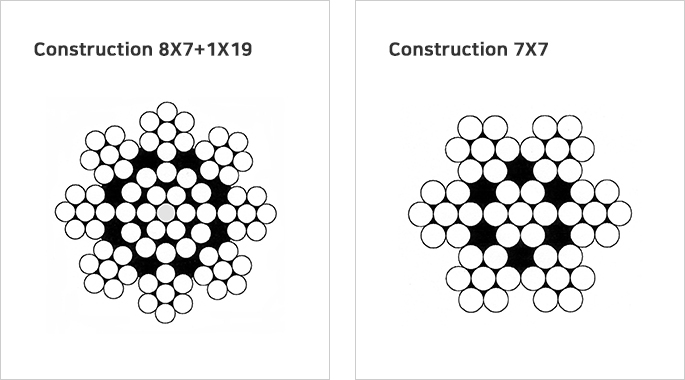

Construction 8X7+1X19
| Dia(mm) | Actual Diameter | Kgs/100m | Breaking Load | Salt spray test | StandardPacking Length per Wooden Reel (meters) |
|
|---|---|---|---|---|---|---|
| 2350N/mm2(240kp/mm2) | ||||||
| kN | kp | |||||
| 1.5 | 1.45 - 1.55mm | 1.04 | 2.45 | 250 | Min. 72hr~350hr |
5,000 ~ 12,000meters |
| 1.8 | 1.77 - 1.87mm | 1.51 | 3.53 | 360 | Min. 72hr~350hr |
5,000 ~ 10,000meters |
Construction 7X7
| Dia(mm) | Actual Diameter | Kgs/100m | Breaking Load | Salt spray test | StandardPacking Length per Wooden Reel (meters) |
|
|---|---|---|---|---|---|---|
| 2350N/mm2(240kp/mm2) | ||||||
| kN | kp | |||||
| 1.5 | 1.50 - 1.60mm | 0.99 | 1.90 | 194 | Min. 72hr~350hr |
5,000 ~ 12,000meters |
| 1.8 | 1.73 - 1.83mm | 1.39 | 2.73 | 280 | Min. 72hr~350hr |
5,000 ~ 10,000meters |
