Automotive control cable

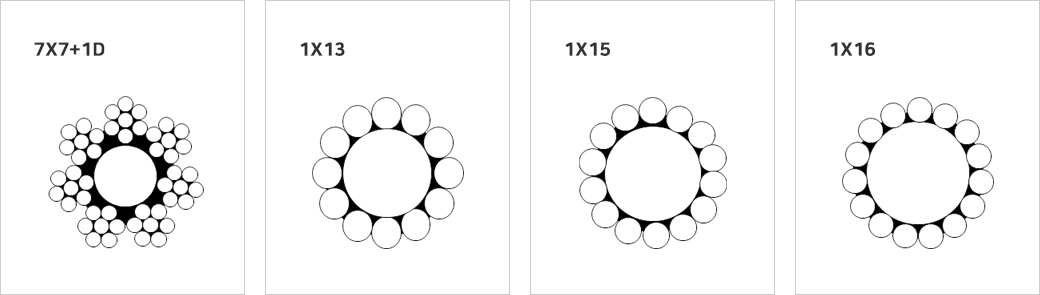

| Construction | Dia (mm) | No. of wires | kgs/100m | Tolerance | MBL (kgs) | Remark |
|---|---|---|---|---|---|---|
| 1X13 | 2.5 | 13 (1+12) | 3.29 | -0.04/+0.12 | 643 | Center Wire : Oil-tempered |
| 1X13 | 3.2 | 13 (1+12) | 5.29 | -0.00/+0.20 | 850 | Center Wire : Phosphated wire |
| 1X15 | 3.5 | 15 (1+14) | 6.33 | -0.00/+0.25 | 1100 | Center Wire : Phosphated wire |
| 1X16 | 2.3 | 16 (1+15) | 2.98 | -0.03/+0.03 | 420 | Center Wire : Oil-tempered |
| 1X16 | 2.3 | 16 (1+15) | 2.98 | -0.00/+0.16 | 420 | Center Wire : Phosphated wire |
| 7X7+1D | 3.5 | - | 5.07 | -0.00/+0.25 | 920 | Center Wire : Oil-tempered |
